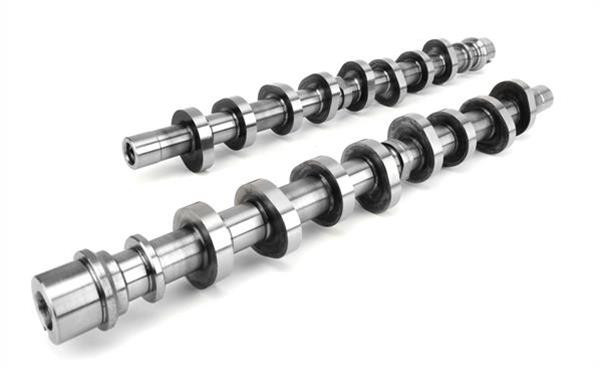

COMP STAGE II 102600 CUSTOM GRIND CNC BILLET CAMS 1999-04 FORD SVT LIGHTNING 02-03 HARLEY DAVIDSON SUPERCHARGED

The days of poor performance aftermarket cams are gone. LFP is proud to offer our Hi lift design camshafts. LFP cam profiles offer faster valve openings and more area under the curve, which helps promote a broad torque and horsepower RPM band. LFP 2V Cams offer a unique valve train design, which allows you to push the limits on valve train acceleration rates, while still maintaining everyday driving reliability. All LFP Cams are ground on new steel billet cam cores. Specs 234/238 @ .050 Duration .545"/.550" Lift 113 LSA

Brand:COMP Cams

Manufacturer's Part Number:102600

Part Type:Camshafts

Product Line:COMP Cams Xtreme Energy Modular 2V Camshafts

Summit Racing Part Number:CCA-102600

UPC:036584072737

Cam Style:Hydraulic roller follower

Basic Operating RPM Range:1,800-5,800

Intake Duration at 050 inch Lift:234

Exhaust Duration at 050 inch Lift:238

Duration at 050 inch Lift:234 int./238 exh.

Advertised Intake Duration:270

Advertised Exhaust Duration:274

Advertised Duration:270 int./274 exh.

Intake Valve Lift with Factory Rocker Arm Ratio:0.550 in.

Exhaust Valve Lift with Factory Rocker Arm Ratio:0.550 in.

Valve Lift with Factory Rocker Arm Ratio:0.550 int./0.550 exh.

Lobe Separation (degrees):113

Computer-Controlled Compatible:Yes

Grind Number:XE270AH

Valve Springs Required:Yes

Camshaft Manufacturers Description:Hot street cam, needs 3.55+ gears with 2000+ stall. Intake, exhaust, computer and 26113 springs recommended. Noticeable idle.

Quantity:Sold as a pair.

Option:

Brand:COMP Cams

Manufacturer's Part Number:26113-16

Part Type:Valve Springs

Product Line:COMP Cams Valve Springs

Summit Racing Part Number:CCA-26113-16

UPC:036584044376

Number of Springs Per Valve:Single

Outside Diameter of Outer Spring (in):1.061 in.

Coil Bind Height (in):0.952 in.

Damper Spring Included:No

Spring Rate (lbs/in):191 lbs./in.

Inside Diameter of Outer Spring (in):0.640 in.

Valve Spring Style:Beehive

Valve Springs Coated:No

Quantity:Sold as a set of 16.

Valve springs are one of the most critical and overlooked components in your engine. They must be matched to your cam in order for the engine to reach its full potential. It does absolutely no good to install a cam that will perform up to 8,000 rpm if you do not have the correct springs. Use the only valve springs that will give the recommended spring pressure with the valve both on the seat and at maximum lift. COMP Cams valve springs are offered in single and dual styles to meet your cam requirements.
