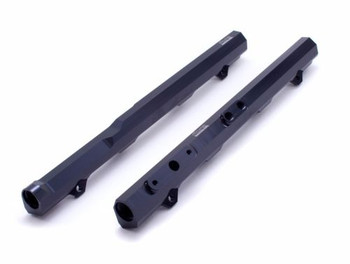

FORE INNOVATIONS BLACK SN95 5-900 BILLET FUEL RAILS 96-04 FORD SVT COBRA/MACH1 4V DOHC

Our famous SN95 4V rails have been redesigned and are shipping now!

Changes from our previous generation:

1. Newly restyled...fresh modern design.

2. Significantly increased clearances. Easier installation, fits all known supercharger and intake combinations.

3. Angled FRP Sensor boss. No need for 90 degree adapter for large case blowers or N/A intakes

4. Integrated mounting tabs: cleaner design, stronger, lower cost, higher quality rails.

5. Shorter overall rail: more clearance for fittings on the front ports.

6. 1/8 NPT ports moved forward on driver rail for better accessibility.

• Designed and manufactured from a solid block of 6061-T6 aluminum for perfect fit on all superchargers and Ford intake manifolds.
• Integrated mounts for safe and reliable injector seating.
• Two 1/8 NPT ports for fitting fuel pressure gauge or fuel supply for nitrous.
• Permits use of OEM Fuel Rail Pressure Sensor (or can be blocked)

FITMENT

• 1996-1998 Mustang Cobra (requires late model heads and intake manifold or supercharger)
• 1999-2001 Mustang Cobra
• 2003-2004 Mustang Cobra*
• 2003-2004 Mach1
• *KB Mammoth users require flat head screws on discharge plate (M8 x 50)
• *use blockoff plate to eliminate FRP Sensor
•
• SPECIFICATIONS
• Through bore: 14mm
• Inlet ports: #8 o-ring
• Auxillary ports: 1/8 NPT

REQUIRED ITEMS FOR INSTALLATION

• Aftermarket fuel lines (or OEM line adapter)
• Crossover line (or y-block)
• 1/8 NPT plugs (or connections to auxillary ports) and Loctite 567
