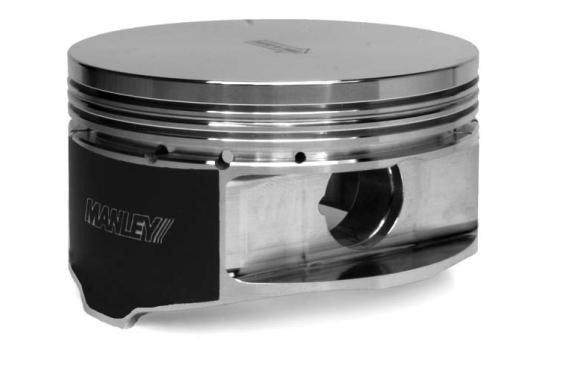

MANLEY PLATINUM SERIES PISTONS 594220C-8 18CC DISH FORD SVT 99-04 LIGHTNING SUPERCHARGED HARLEY 02-03 0.020 OVER BORE

BORE SIZE 0.020 OVER

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.5, 1.5, 3mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks, tool steel wrist pins and pressure balance grooves are included with every set at no additional charge. *Forging* * 2618 alloy for maximum high temperature strength and fatigue resistance. * 4032 "High Silicon" alloy for budget conscience street applications. (49 series Ford Modular only) *Attributes* * "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling. * Proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish. * All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall. * Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity. * Value - added features such as a pressure balance groove included in all series. * Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity. * Moly coated skirts come standard on all Ford Modular pistons and are optional on the Chevy LS and Chrysler HEMI pistons. * Offset wrist pin design ensures more quiet start-ups and better performance. *Note:* Compression ratios are calculated at 0.00" deck clearance, a 9.240" deck height, and a .042" thick compressed head gasket.

Features and Benefits

• 2618 Alloy Forgings: We use domestic 2618 alloy forgings, ensuring superior strength and performance. Chrome Moly Wrist Pins: Premium Chrome Moly wrist pins come standard with our Standard Series Pistons. For select SKUs, we offer wrist pin upgrades to 9310 and Turbo Tuff/DLC alloys, providing additional durability. Exacting Ring Lands and Grooves: We adhere to strict standards for piston ring lands and grooves, resulting in enhanced ring seal and more power. Cam and Barrel Profiles: Our pistons boast cam and barrel (skirt) profiles that generate substantial power while being gentle on cylinder walls. Unique Fixturing: Manley's unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness.
